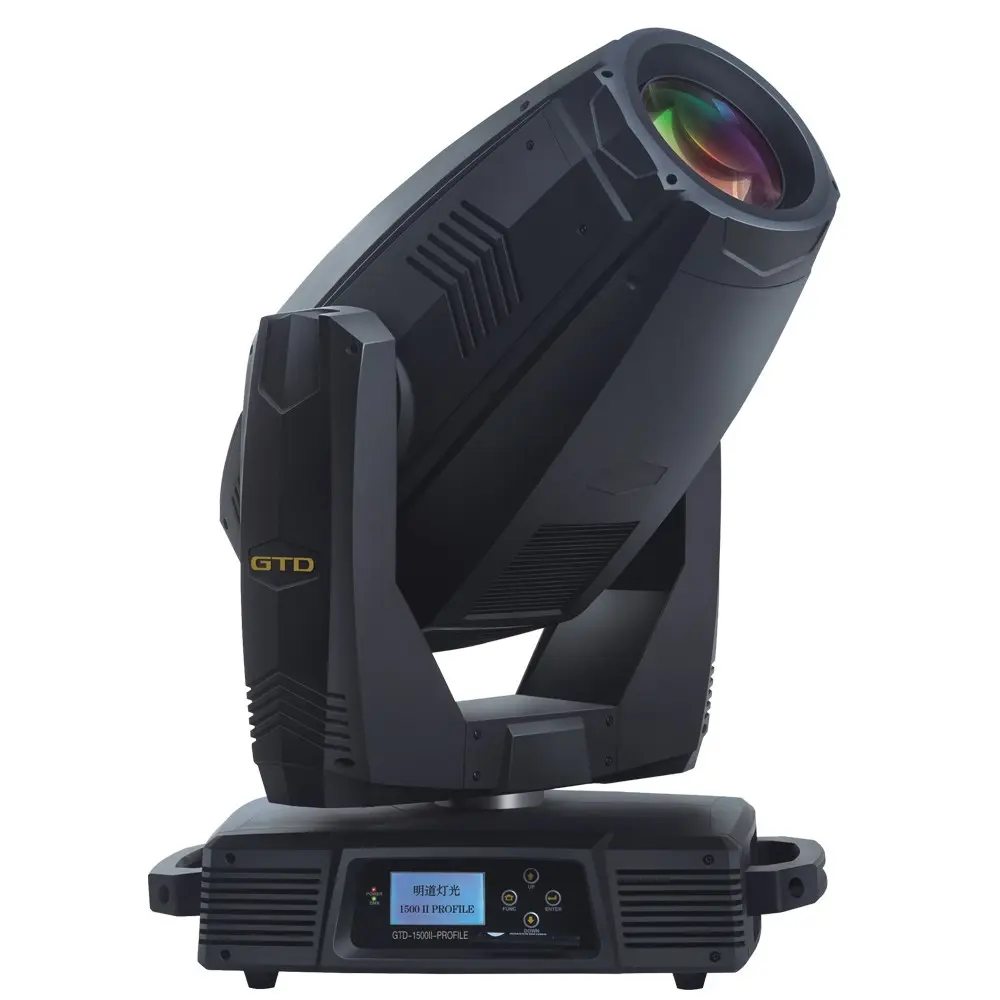

MOVING HEAD (E-BALLAST) GTD-1500II
• Name: Moving head spot
• Model: GTD-1500II SPOT
• Light source: OSRAM SHARXS HTI 1500W/D7/60
• Color temperature correction: 2700 K-6000K wide-range, linear correction system
• Output power: 1,500W/750W automatic switching, automatic fan speed control
• Fast zooming: 10°-60°linear fast zooming ensuring even light spots in any range
• Stepless focusing: arbitrary multi-point linear focusing, auto-focusing from 2 meters to infinity
• Linear dimming: 0-100% linearly adjustable, 16-bit accurate fine tuning available
• Fast iris: fast iris with 16 segments, 5-100%, with built-in macro function effect
• Fast shutter: similar to electronic strobe effect, capable of strobe switching1-20 times/sec
• Fixed color: 1 fixed color wheel with 7 dichroic filters, linear color conversion and rainbow effect
• Color mixing: CMY + CTO linear infinite color choices
• Dynamic gobo: 2 rotating gobo wheels with 6 interchangeable gobos + indexable and bi-directionally rotatable at variable speeds, gobo shaking at variable speeds, and 16-bit accurate fine tuning
• Static gobo: 1 fixed gobo wheel with 7 interchangeable gobos, bi-directionally rotatable at variable speeds, gobo shaking at variable speeds
• Metallic gobo: bi-directionally rotatable at variable speeds, high definition patterns in combination with other patterns can create dynamic patterns such as flame, water wave, wave, floating clouds, etc.
• Prism effect: 1 prism, bi-directionally rotatable at variable speeds
• Wash effect: 0-100% linear Wash adjustment; capable of generating Wash effect by synchronous zooming
• Pan/tilt: pan scanning angle 540°/630°, tilt scanning angle 270°, three-phase motor provides fast smooth scanning and eliminates drive noise
• Automatic energy saving: when the shutter or CMY is closed, 50% power consumption will be reduced automatically with the photoelectric tracking induction technology
• Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface without power connection
• Sleep mode: uses the most advanced technology to remotely activate sleep mode. When the fixture is disconnected from signal, the sleep mode is enabled automatically to make it more stable and safer. Sleep time can be customized
• Communication design: DMX wired or wireless signal transmission, RDM bi-directional control technology, ART-NEY Ethernet data transmission, and remote function and effect upgrades
• Intelligent heat dissipation: adopts forced air cooling and intelligent temperature monitoring to cool fixture parts by monitoring fixture status: start, use, shutter closing and lamp turnoff, automatically adjusting the cooling system components to efficiently control the temperature according to the temperature values in different locations of the fixture
• Control channel: 3 optional control channels 37/31/28
• Weight: electronic ballast 43Kg
• IP: IP20, IP of adjustable rainproof cover up to IP44
• Packing: waterproof and shockproof flight case or carton
• Accessories: User Manual, 1 pc; safety cord, 2 pcs; aluminum alloy clamp, 2 pcs; 5-meter-long signal wire, 1 pc
