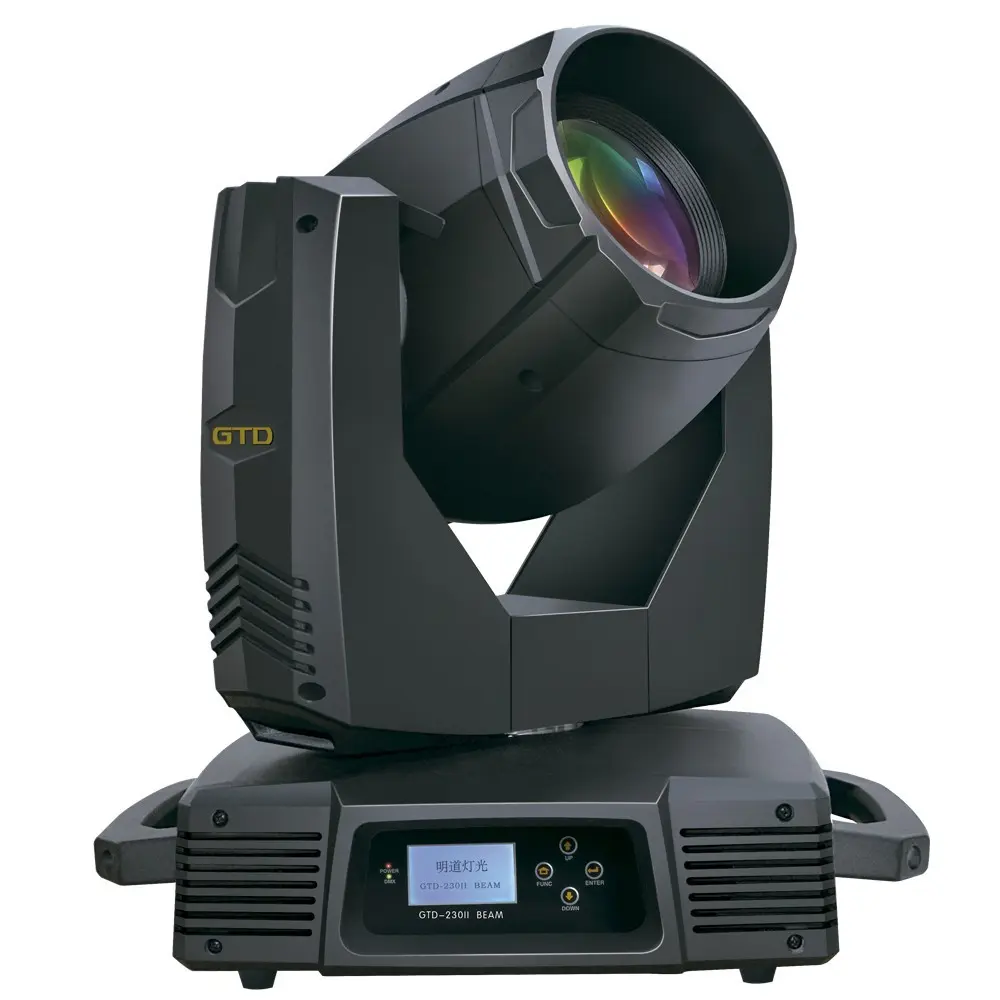

MOVING HEAD (E-BALLAST) GTD-230 II BEAM

Name: Moving head beam

Model: GTD-230 II BEAM

Light source: OSRAM SIRIUS HRI 230W New integral lamp Average life time is 2000H

Color temperature correction: 8500K/4500K/3200K

Beam angle: parallel beam angle, 0°~3.5° adjustable

Linear dimming: 0-100% mechanical linear dimming

Fast shutter: pulse shutter, synchronous and asynchronous, capable of strobe switching1-20 times/sec

Fixed color: 1 fixed color wheel with 14 filters, half-tone effect, linear color conversion, bi-directionally rotatable at variable speeds and rainbow effect

Static gobo: 1 fixed gobo wheel with 17 interchangeable gobos, gobo shaking effect and any gobos positioning

Prism: 1 independent 8-facet prism, bi-directionally rotatable at variable speeds

Focus: high precision optical glass lens, linear high-definition dimming

Atomization: 1 independent atomizing effect, soft natural light spots

Fast iris: up to  grade-7 beam regulation

Pan/tilt: pan scanning angle 540°(16-bit precision scanning), tilt scanning angle 270° (16-bit precision scanning), three-phase motor provides fast smooth scanning and eliminates drive noise

Display interface: wide screen LCD panel in both Chinese and English

Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface without power connection

Sleep mode: uses the most advanced technology to remotely activate sleep mode. When the lamp is disconnected from signal, the sleep mode is enabled automatically to make it more stable and safer. Sleep time can be customized

Communication design: DMX wired or wireless signal transmission, RDM bi-directional control technology, can be upgraded by DMX remote software.

Intelligent heat dissipation: adopts forced air cooling and intelligent temperature monitoring to cool fixture parts, automatically adjusting the cooling system components to efficiently control the temperature according to the temperature values in different locations of the fixture.

Control channel: 3 optional control channels 16/15/12

Weight: electronic ballast 17Kg

IP: IP20, IP of adjustable rainproof cover up to IP44

Packing: waterproof and shockproof flight case or carton

Accessories: User Manual, 1 pc; safety cord, 1 pc; aluminum alloy clamp, 2 pcs; 5-meter-long signal wire, 1 pc
